Fixed Picture Windows — London & the Home Counties
30mm of aluminium, everywhere else glass
A fixed picture window has no gearing, no hinges, no meeting stile — just the outer frame. That's why our sightline drops to 30–45mm on a fixed aluminium picture window, versus 55mm+ on an equivalent opening sash.
Overview

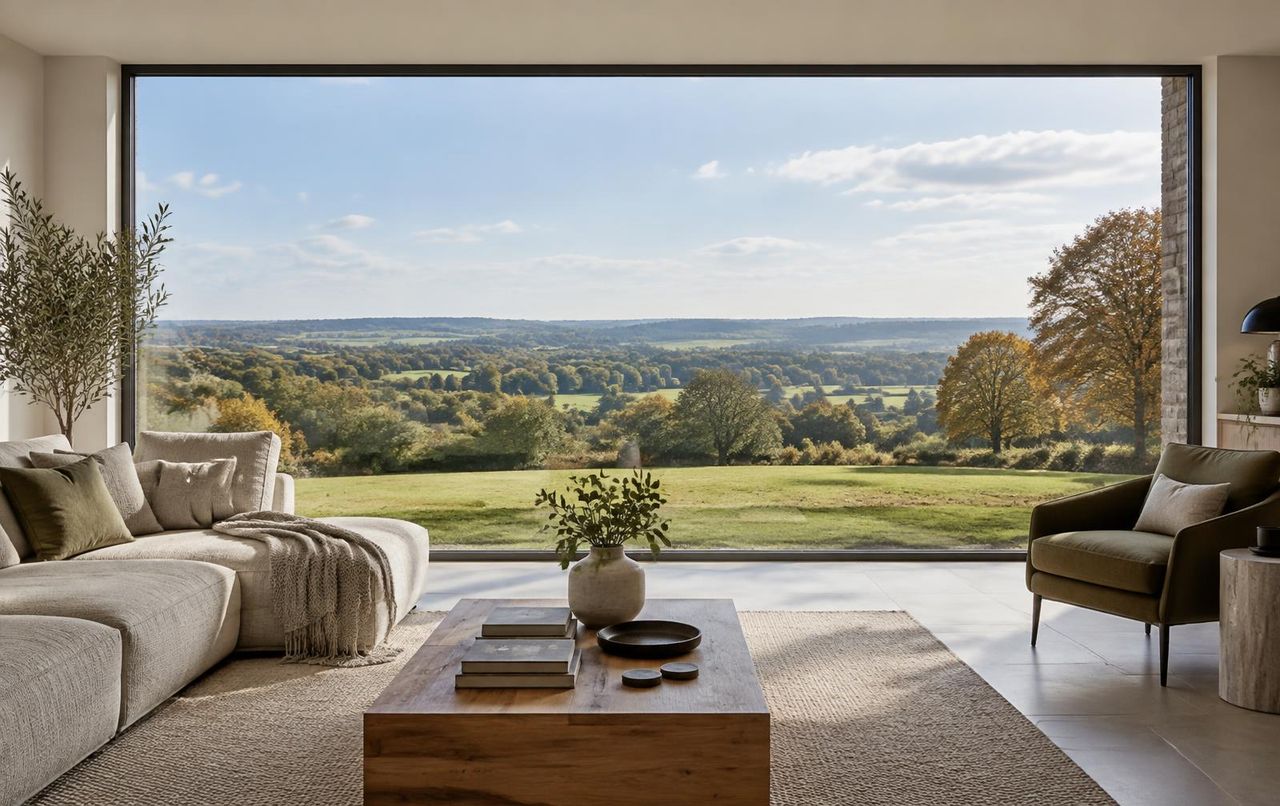

When the glass is the design. A fixed pane in a thermally-broken aluminium frame with sightlines as slim as 30mm — up to 2.7m tall — the frameless-look window we sit above bifolds, between structural piers or at the head of a stairwell.
Thermally-broken aluminium profile (Smart Systems / AluK) · Qualicoat Class 2 polyester powder coat · argon-filled toughened double glazing · silicone-sealed structural glazing on request
Up to 2.7m Tall
A single fixed lite up to 2.7m tall and 3.5m² per panel with standard toughened double glazing. Larger sizes are possible with structural glass and site lifting.
30mm Sightlines
Ultra-slim 30–45mm sightlines on a fixed frame — up to 40% more visible glass than an equivalent uPVC unit.
No Moving Parts
Because they don't open, there are no hinges, gaskets or locking points to fail — a fixed picture window will outlast every other window on the property.
Above Bifolds & Sliders
The natural pairing for a bifold or sliding door — a fixed head light above brings full-height light without adding another opening door.
Any RAL Powder Coat
Any RAL finish, single or dual colour, Qualicoat Class 2 powder coat guaranteed for 20 years.
Structural Glazing Compatible
Fixed picture windows can be integrated into structural glazing runs, glass-to-glass corners and frameless roof lights — we supply and coordinate the assembly.
Three material ranges, one configuration.
The fixed picture configuration is available across every one of our window ranges — the material choice is yours.
Engineered to the millimetre.
Every frame we install is made to your survey sizes with the following performance envelope as standard.
- U-value (whole window)
- 0.9 – 1.4 W/m²K
- Sightline
- 30 – 45 mm
- Max pane
- 2.7 m tall · 3.5 m² per panel · 1.5 m wide standard
- Glass
- Toughened · laminated · self-cleaning · acoustic · solar control
- Finish
- Any RAL Qualicoat Class 2 · dual colour available
- Warranty
- 10-year installation · 20-year powder coat · 5-year sealed unit
Fixed Picture Windows across London
and the Home Counties.
We install fixed picture windows across six counties — every project surveyed, made and fitted by our in-house team. Choose your county to read local knowledge, planning notes and recent work.
See all areas coveredFixed Picture Windows — installed.

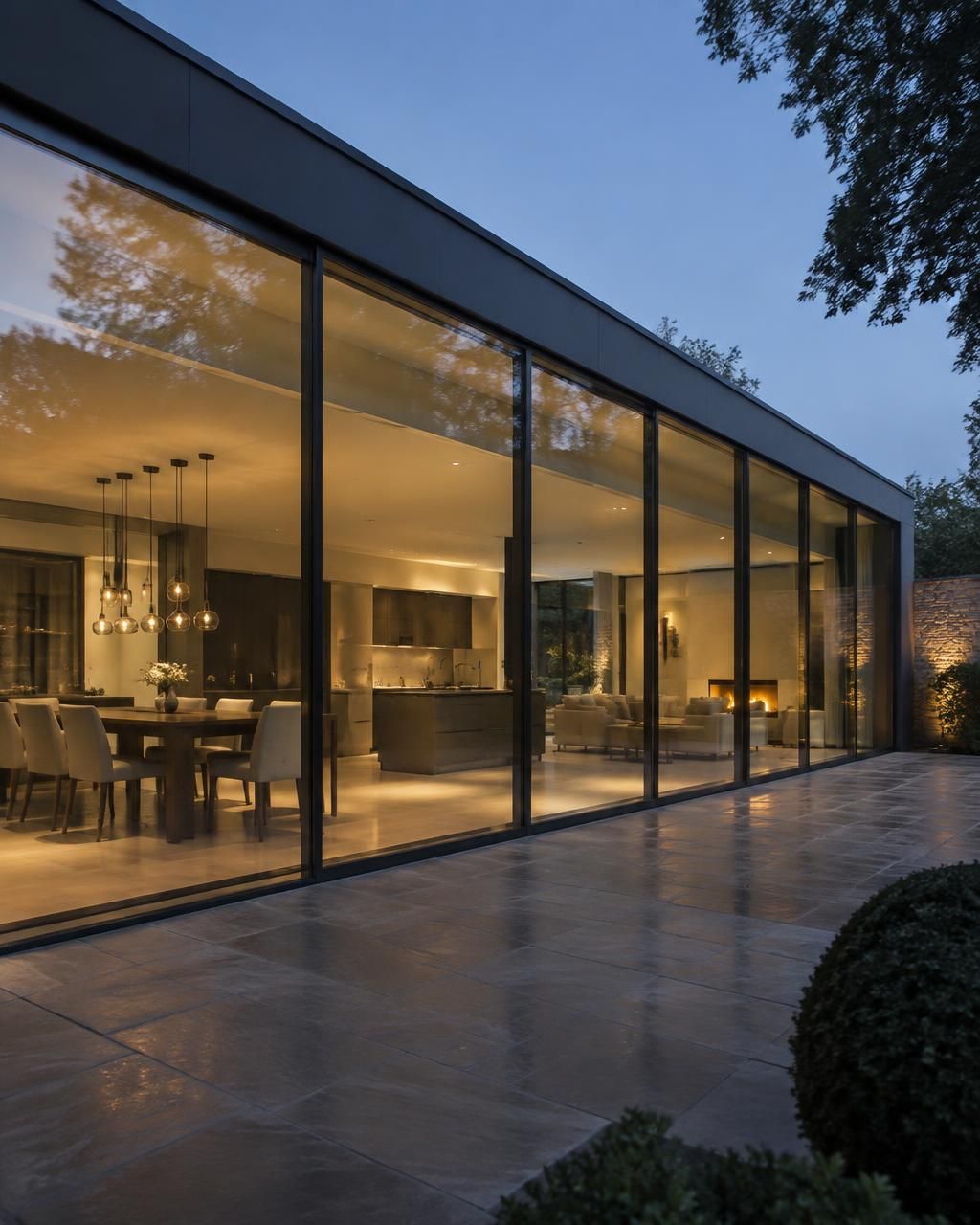

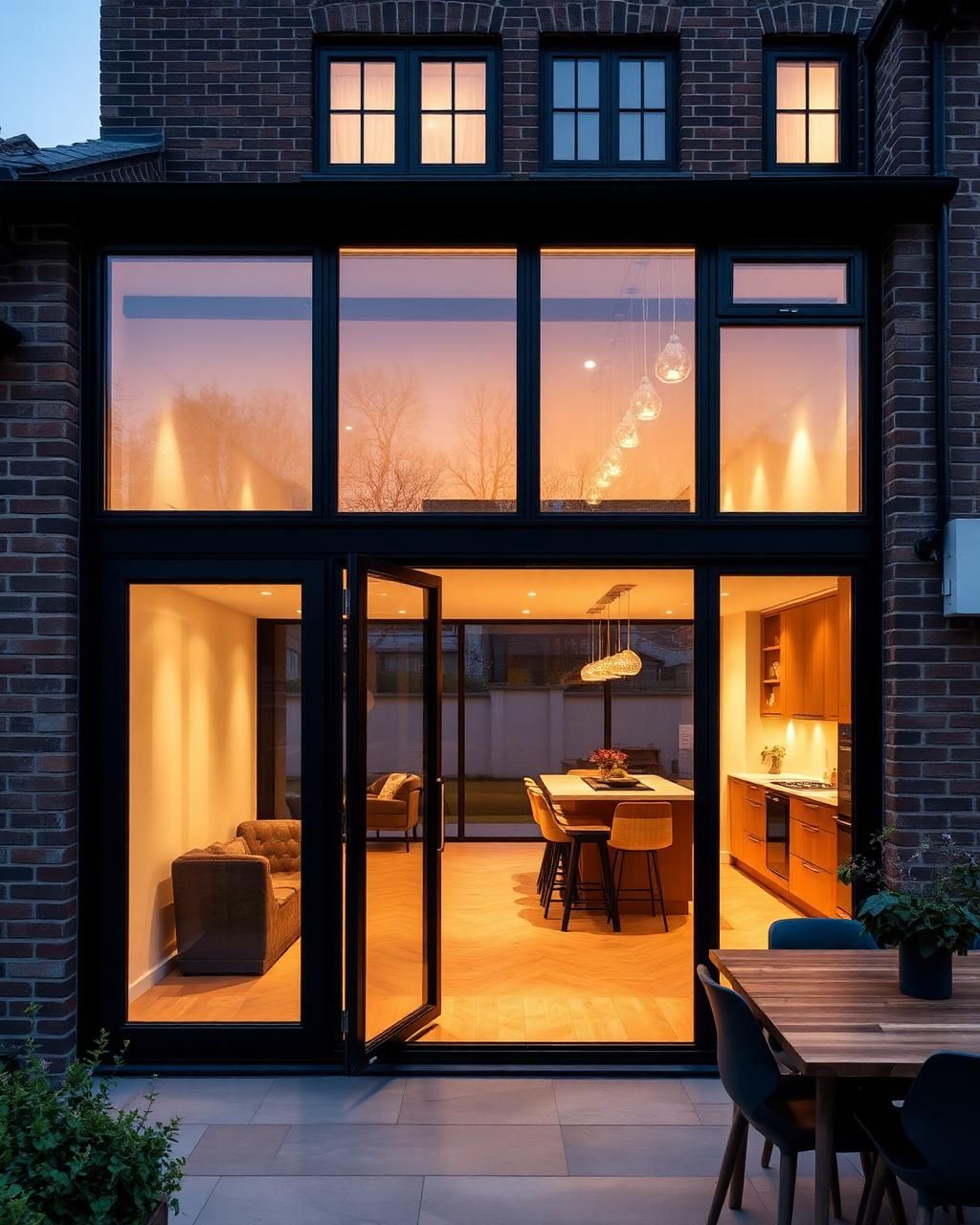

A selection of recent installations across London and the Home Counties, photographed on site.
Practical answers.
Everything homeowners ask us about fixed picture windows — survey, lead times, guarantees and coverage.
How big can a fixed picture window be?+
Up to 2.7m tall and roughly 3.5m² per panel with our standard glass. Larger sizes are possible using structural glass with additional lifting equipment on site — we survey and quote separately for anything over that.
Can you fit one above bifold doors?+
Yes — a fixed head light above a bifold or slider is our most common configuration for full-height rear extensions. We coordinate the head detail, structural opening and colour match as one order.
Do fixed windows meet Building Regs for ventilation?+
A fixed window on its own doesn't provide ventilation, so Approved Document F requires another means of purge ventilation in the room. On a rear extension this is usually satisfied by the adjacent bifold or slider. We check the room-by-room ventilation plan at survey.
How do fixed windows differ from opening windows?+
Fixed windows have no gearing, hinges or opening gaskets, so they achieve slimmer sightlines and have fewer moving parts. They are ideal where another opening already provides ventilation.
Enquire about
Fixed Picture Windows.
Speak with our design team, book a home survey, and receive a fixed written quotation — all with no obligation.
Call · 020 3633 0405
